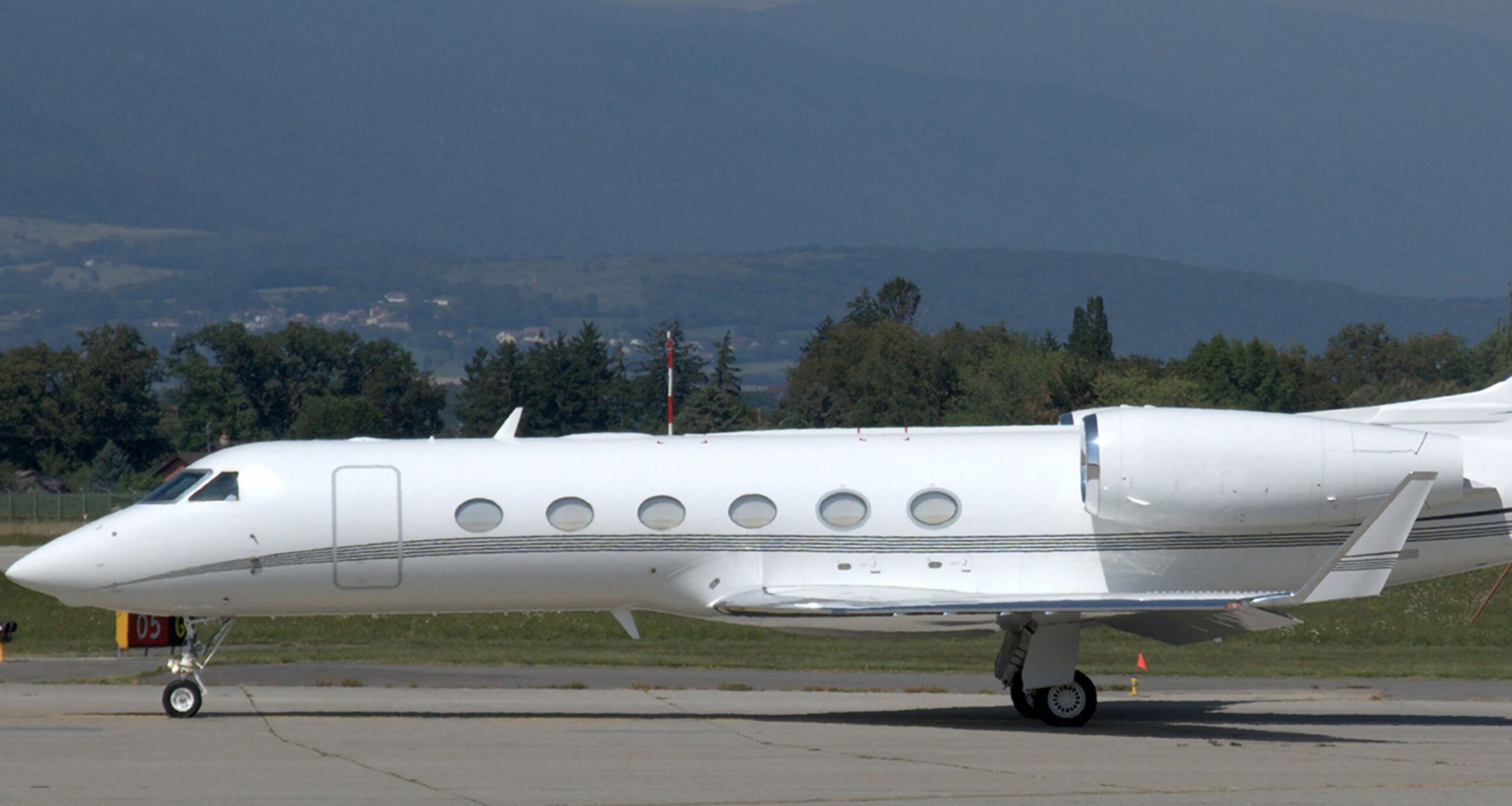

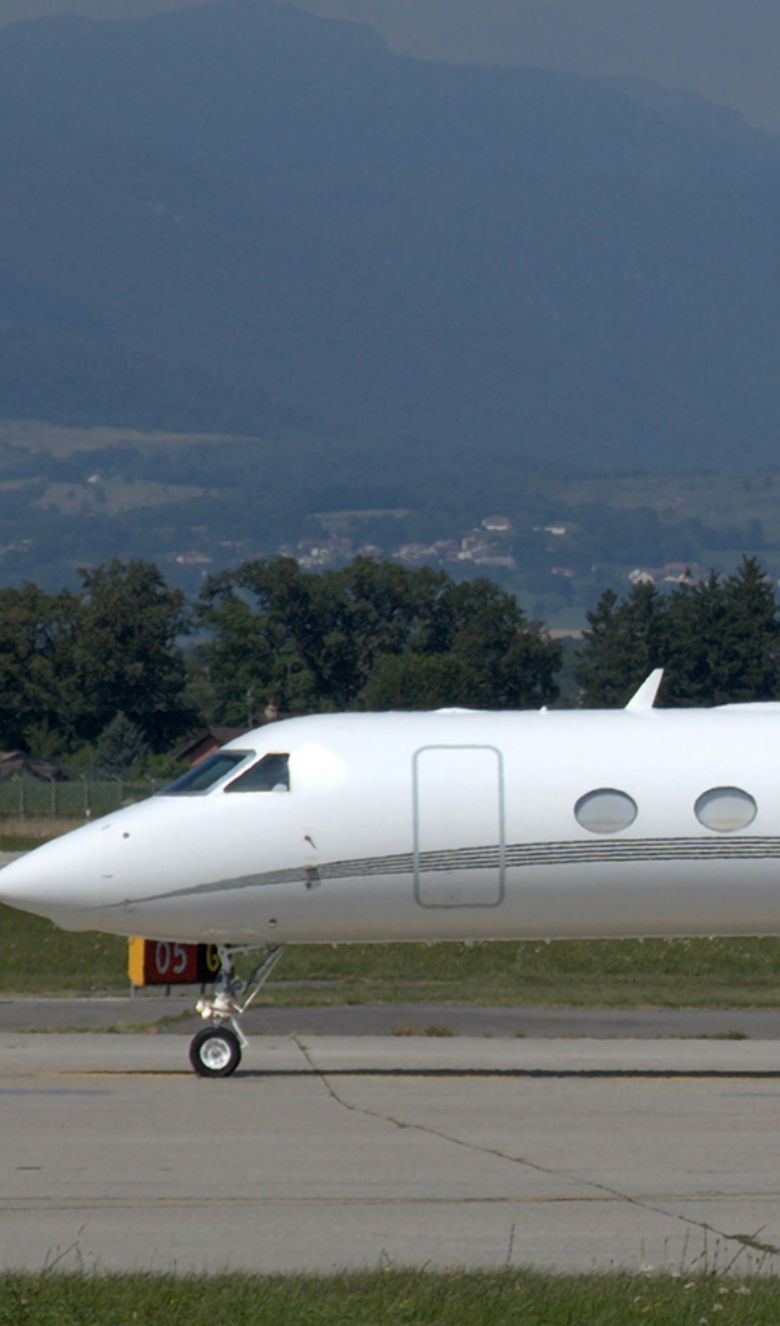

2010 Gulfstream G450

Entry to Service

2010

mfr/model

Gulfstream G450

Airframe

• 2,737 Total hours
• 994 Total landings
• On CAMP Maintenance Tracking
• Enrolled on Gulfstream PlaneParts

Engines

• (2) Rolls Royce Tay MK 611-8C engines
• LH & RH Engines: 2,737 Total hours; 994 Total cycles
• Enrolled on Rolls Royce Corporate Care

APU

• Honeywell GTCP36-150[GIV] APU
• 2,420 Total APU hours
• Enrolled on Honeywell MSP

Passengers

• 14 Passengers
• 2 Crew plus one flight deck Jump seat
• Lie flat berthing for 6

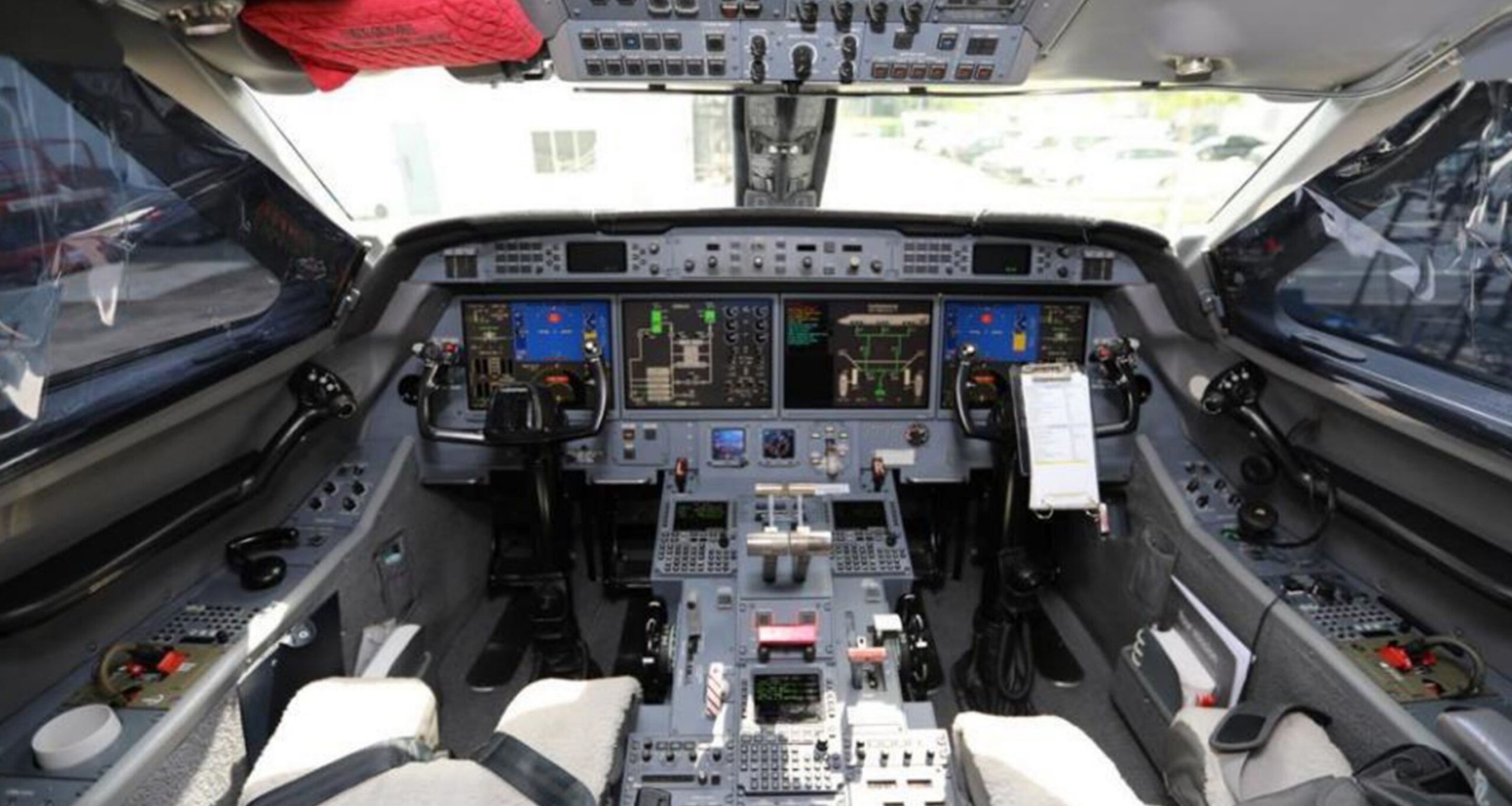

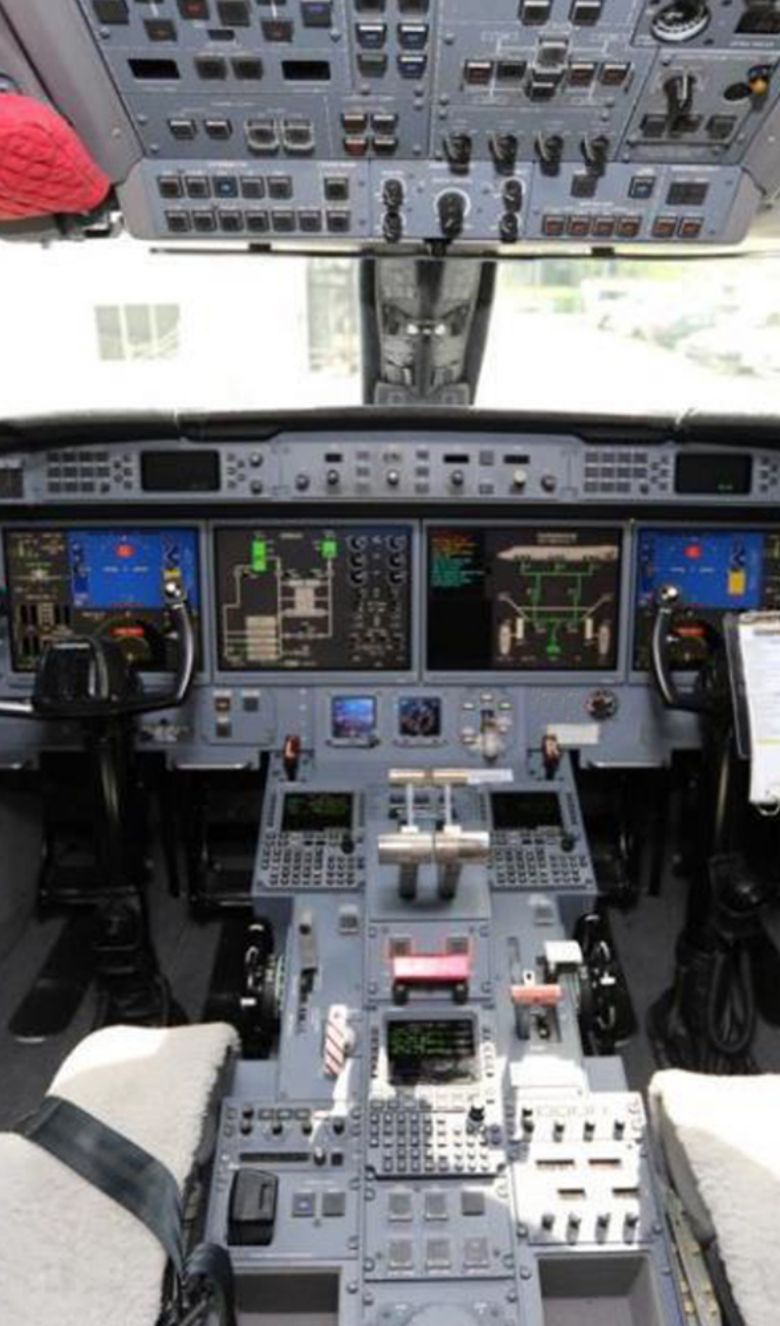

• 4 Honeywell DU-1310 14” flat panel display units
• Dual Honeywell DC-884 display controllers
• Single Honeywell DP-884 display brightness panel
• Single Honeywell Head Up Display (HUD)
• Single Honeywell/Kollsman Visual Guidance System (VGS)
• Triple Honeywell MAU-913 modular avionics units
• Single Honeywell GP-500 flight guidance panel
• Triple Honeywell MC-850 multifunction control display units
• Triple Honeywell AZ-200 air data modules
• Single Honeywell WU-880 weather radar
• Triple Honeywell IR-500 LASEREF V micro inertial reference units

• Dual Honeywell MRC-855A modular radio cabinets w/8.33 spacing & FM Immunity
• Triple Honeywell AV-900 audio panels
• Dual Honeywell RT-300 radio altimeters
• Single L3 Cockpit Voice Recorder (CVR)
• Single L3 Flight Data Recorder (FDR) 88 parameters
• Single L3 GH-3100 standby attitude/airspeed/altitude indicator
• Traffic Collision Avoidance System (TCAS 2000 w/CHG 7)
• Dual Mason cursor control devices
• Single Miltope cockpit printer
• Triple Honeywell NZ-2000 Flight Management Systems (FMS)

• Upgraded Enhanced Cabin Soundproofing for a Quieter Passenger Flight Experience

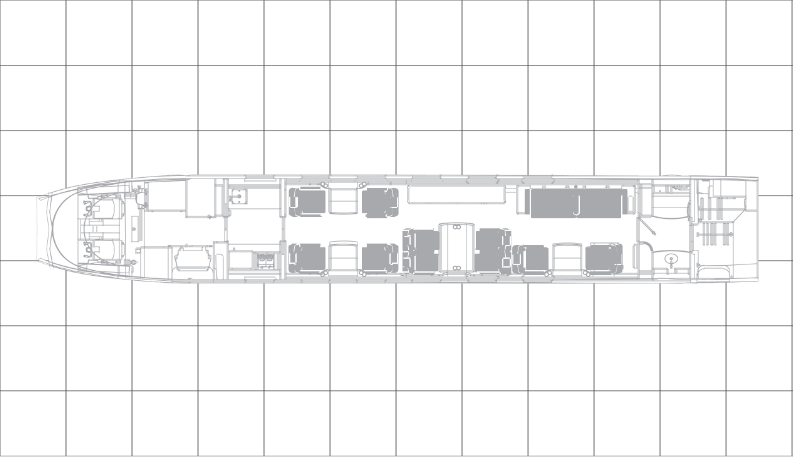

Seating for 14 PAX in 4 zone layout:

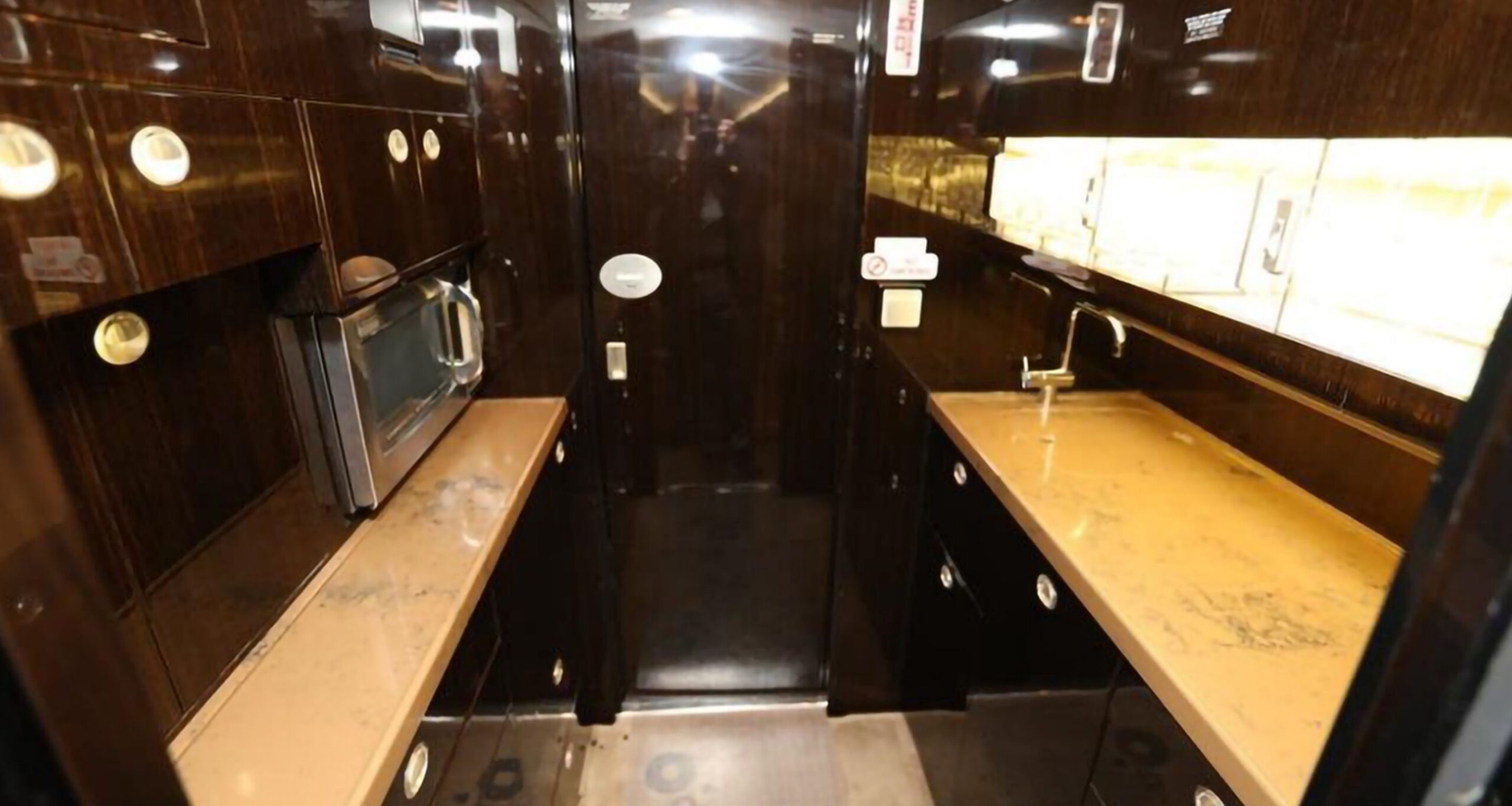

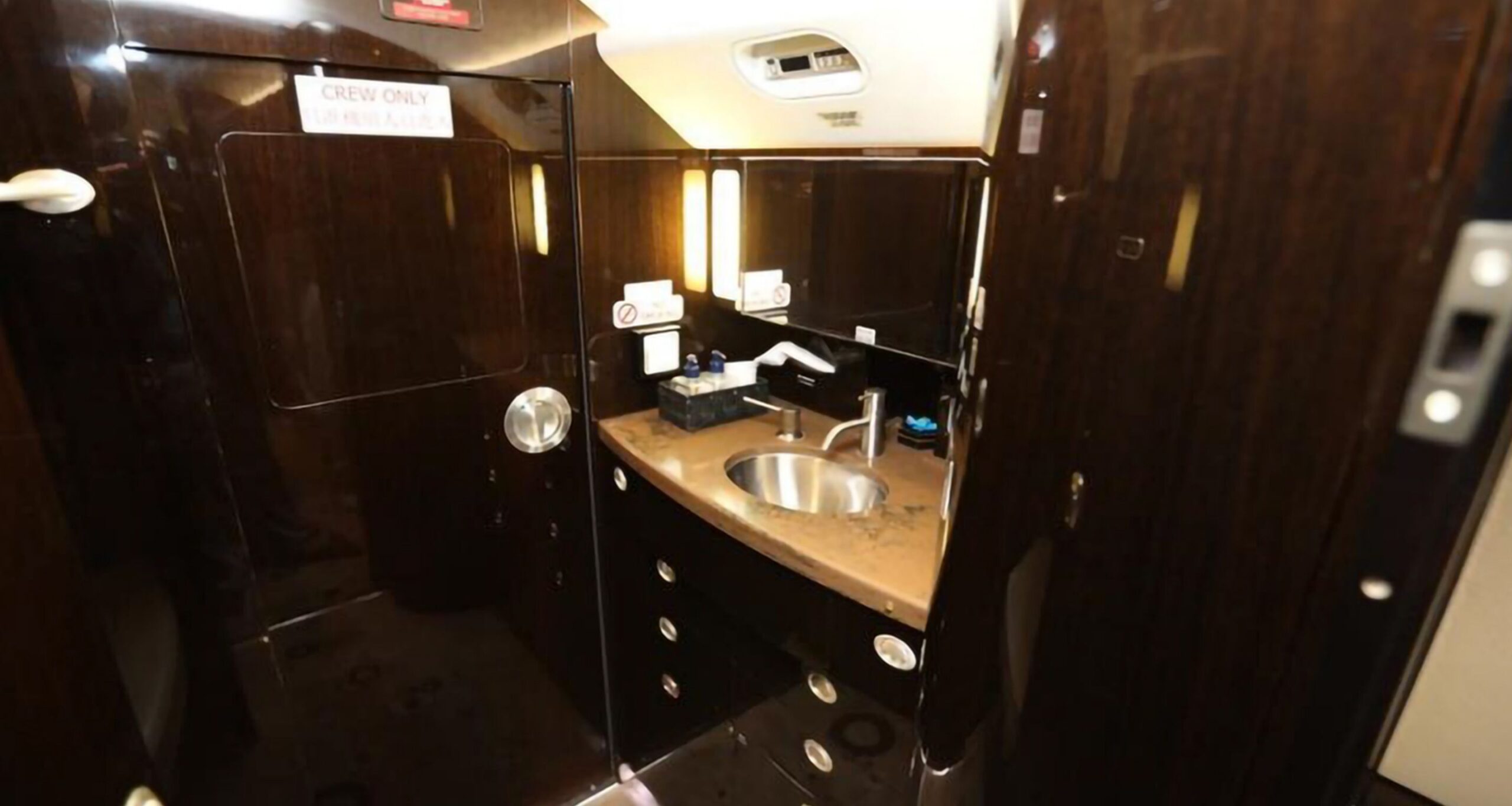

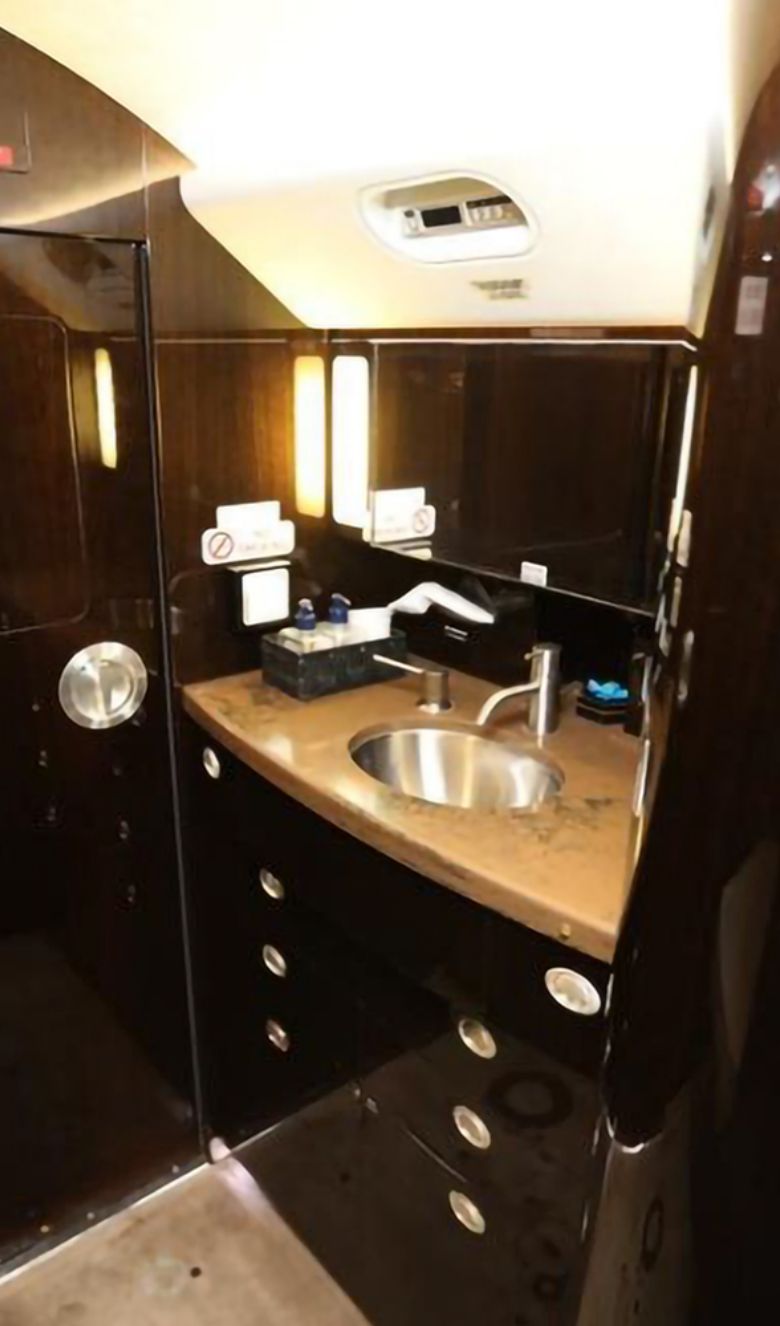

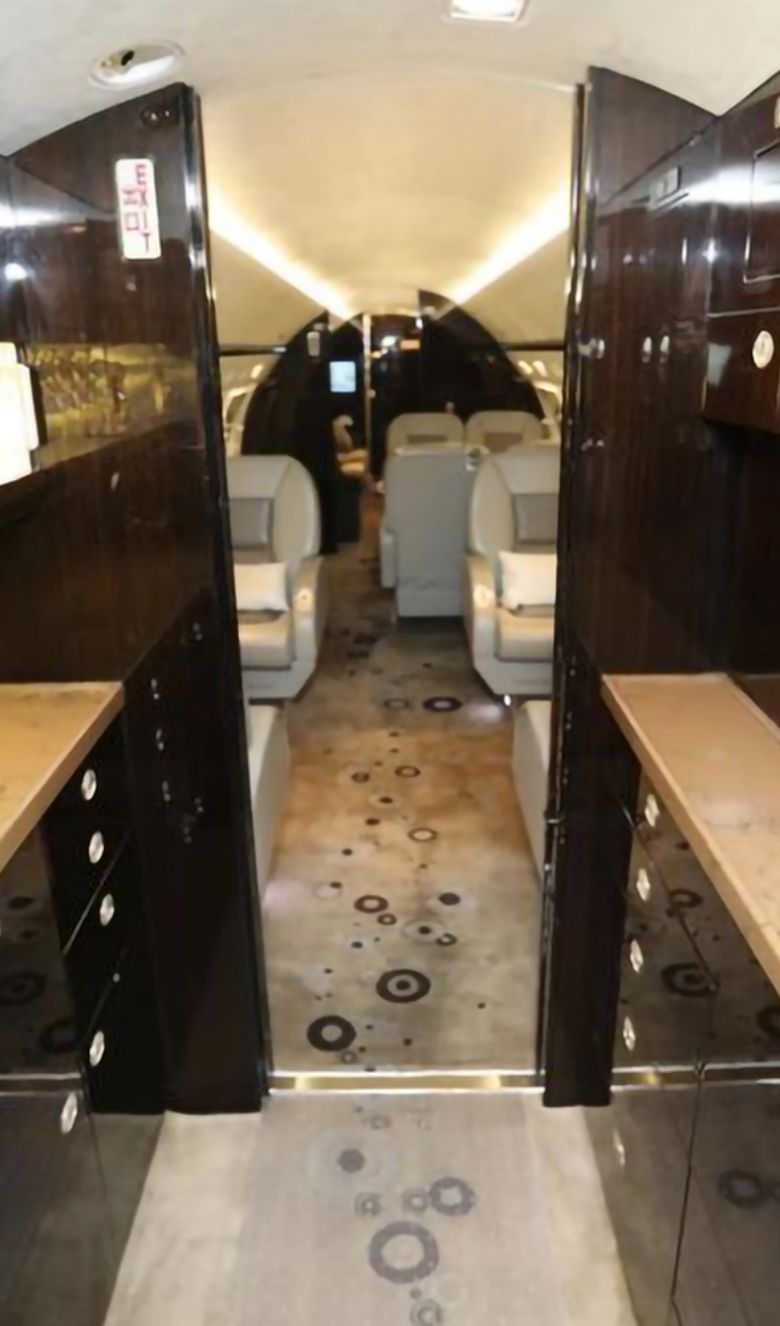

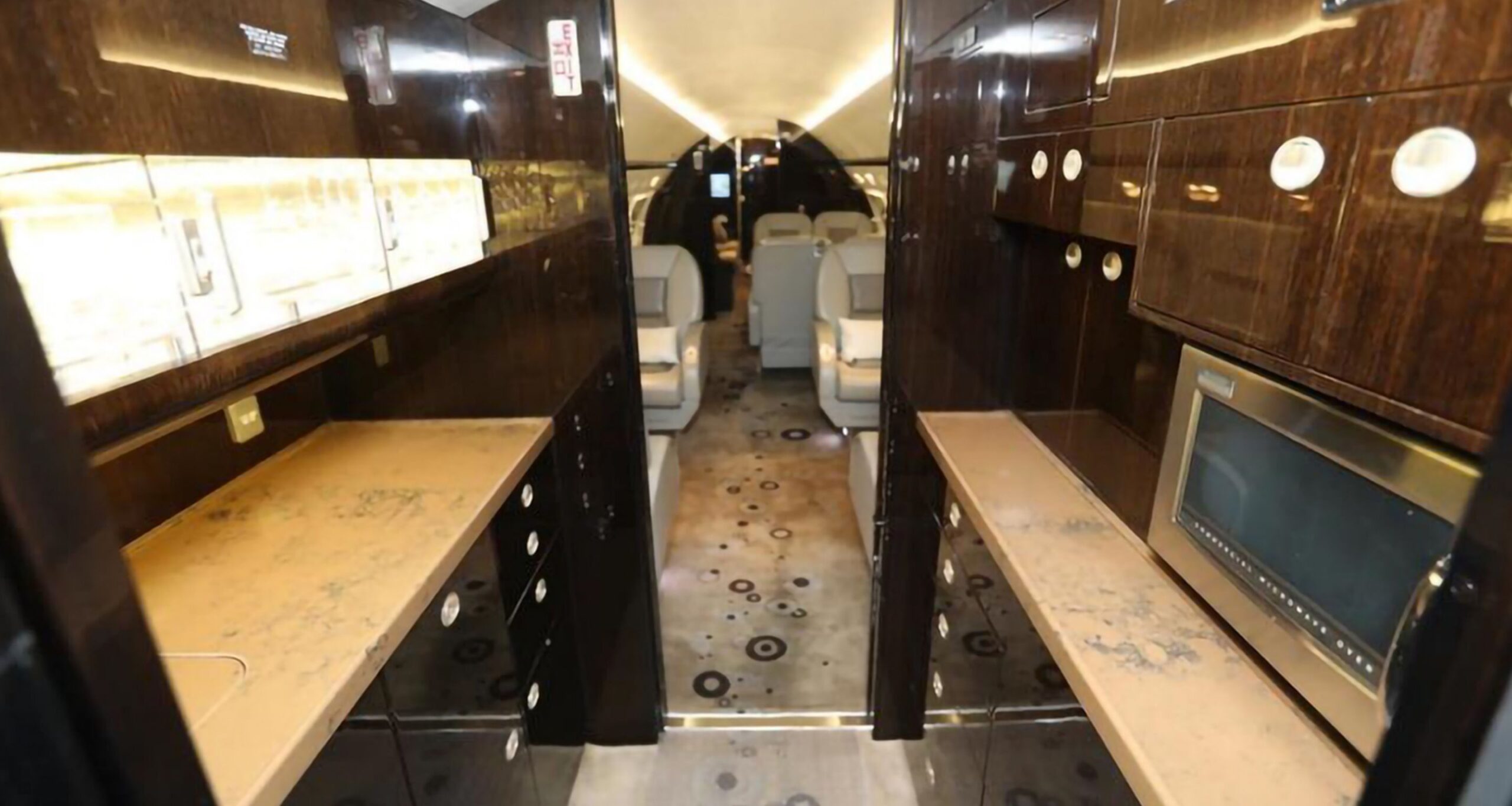

• Front Entry Area: forward vacuum-vented lavatory, crew rest area, fold out jumpseat, storage closet and cabinet; fully equipped Universal forward galley for hot/cold meal & beverage service

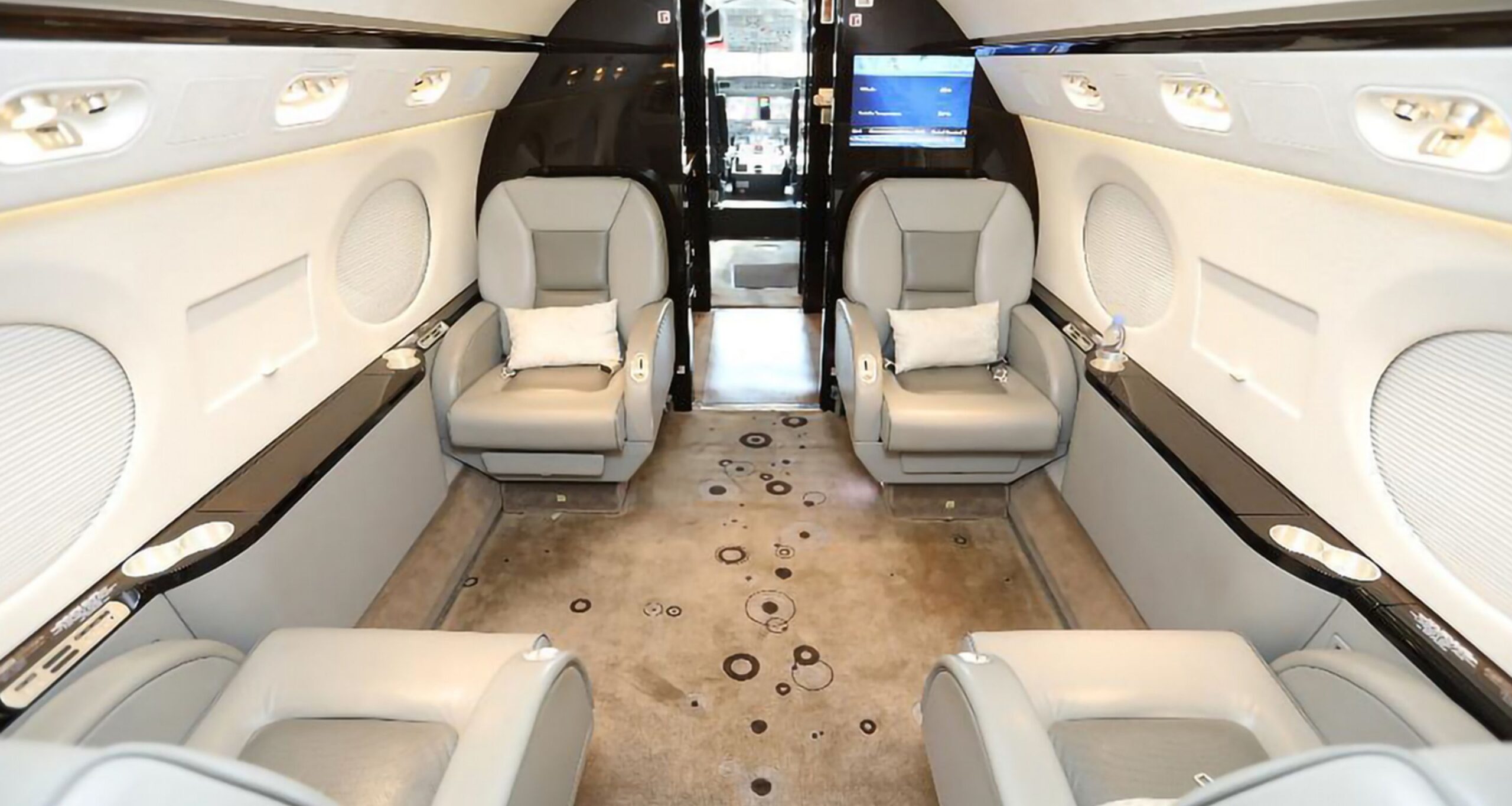

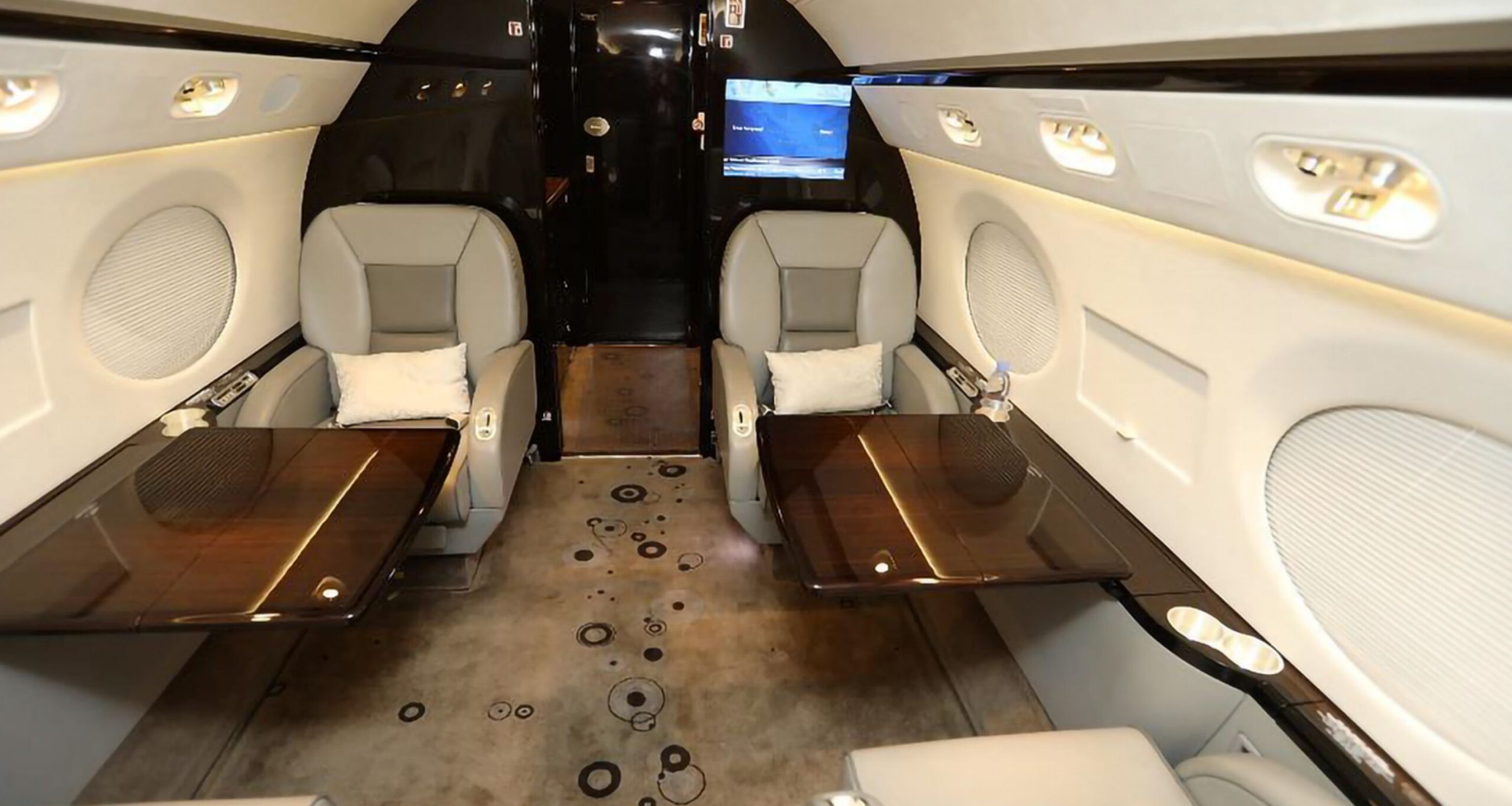

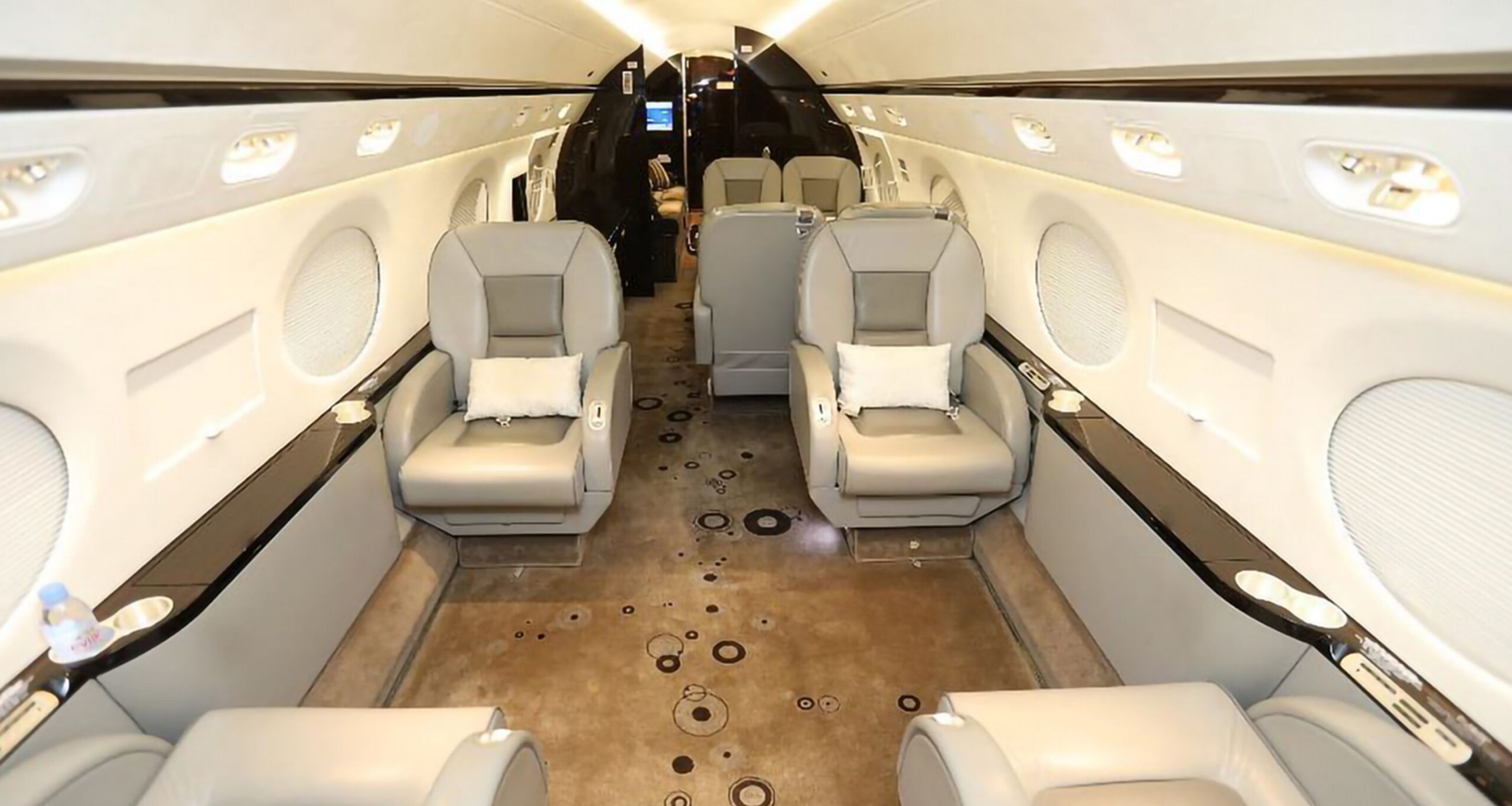

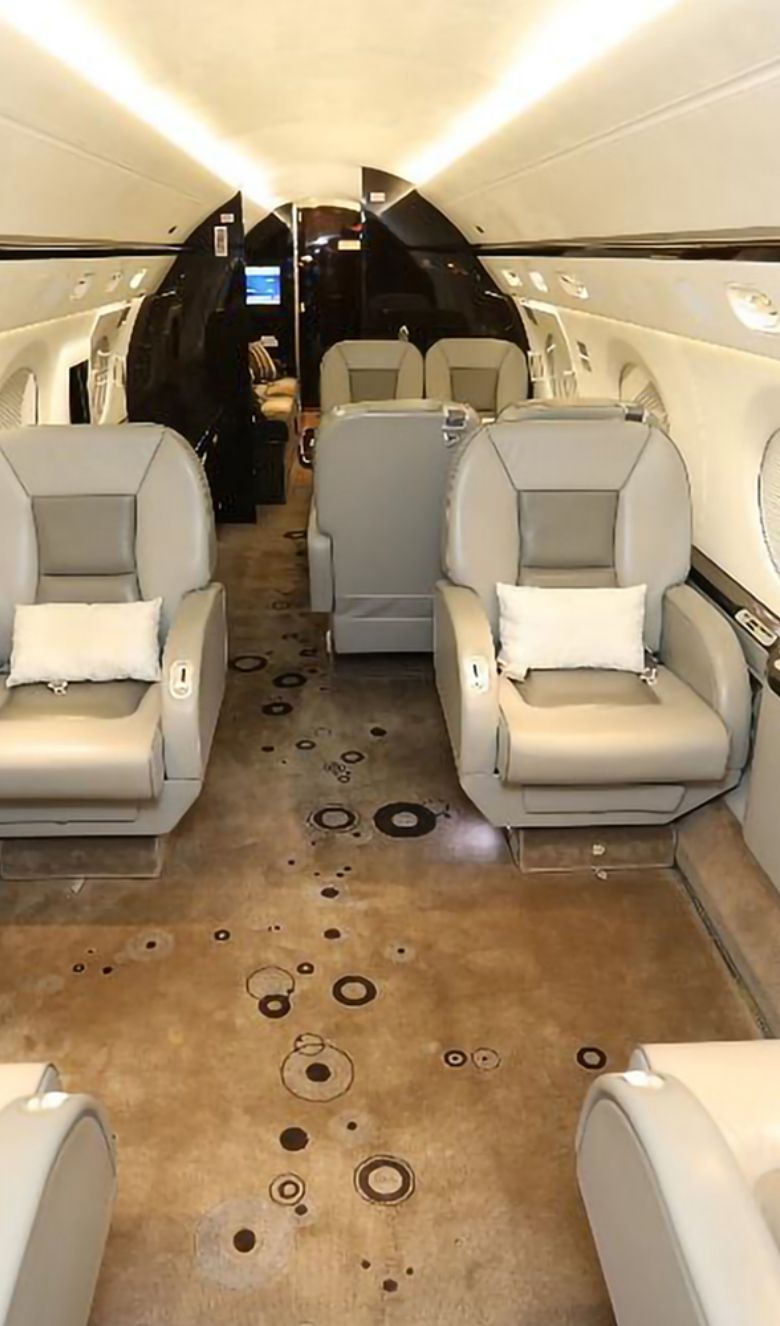

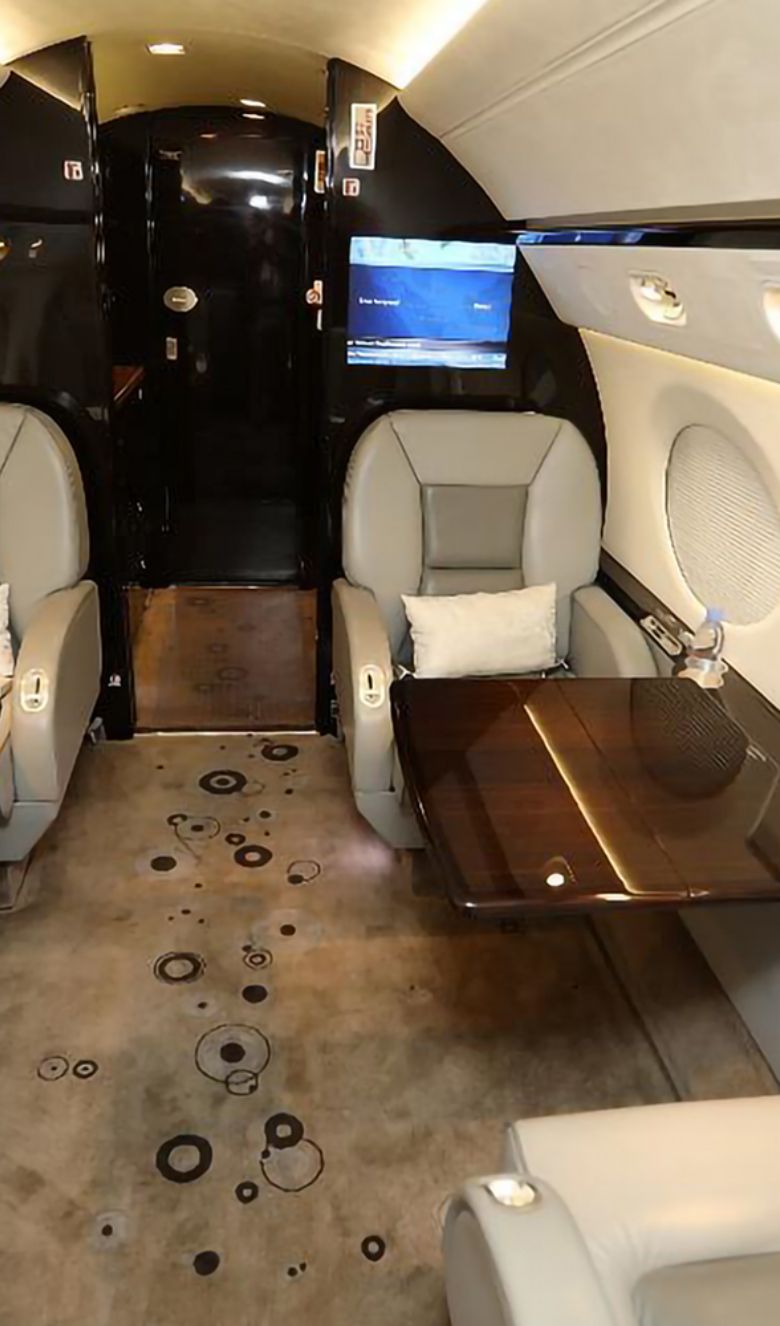

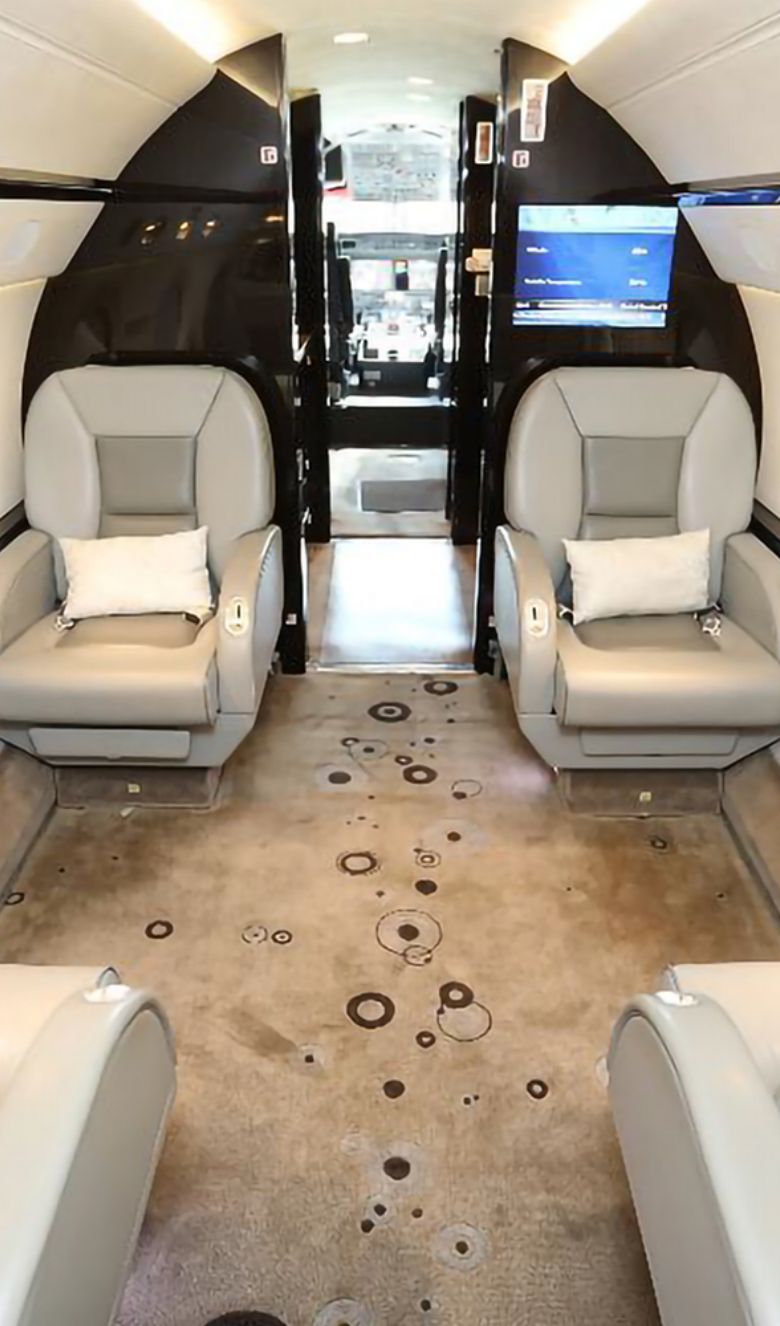

  • Forward cabin: 4 Upgraded 26” single recliner club seats; fixed forward pocket door bulkhead with aft facing flush mount 20” LCD monitor

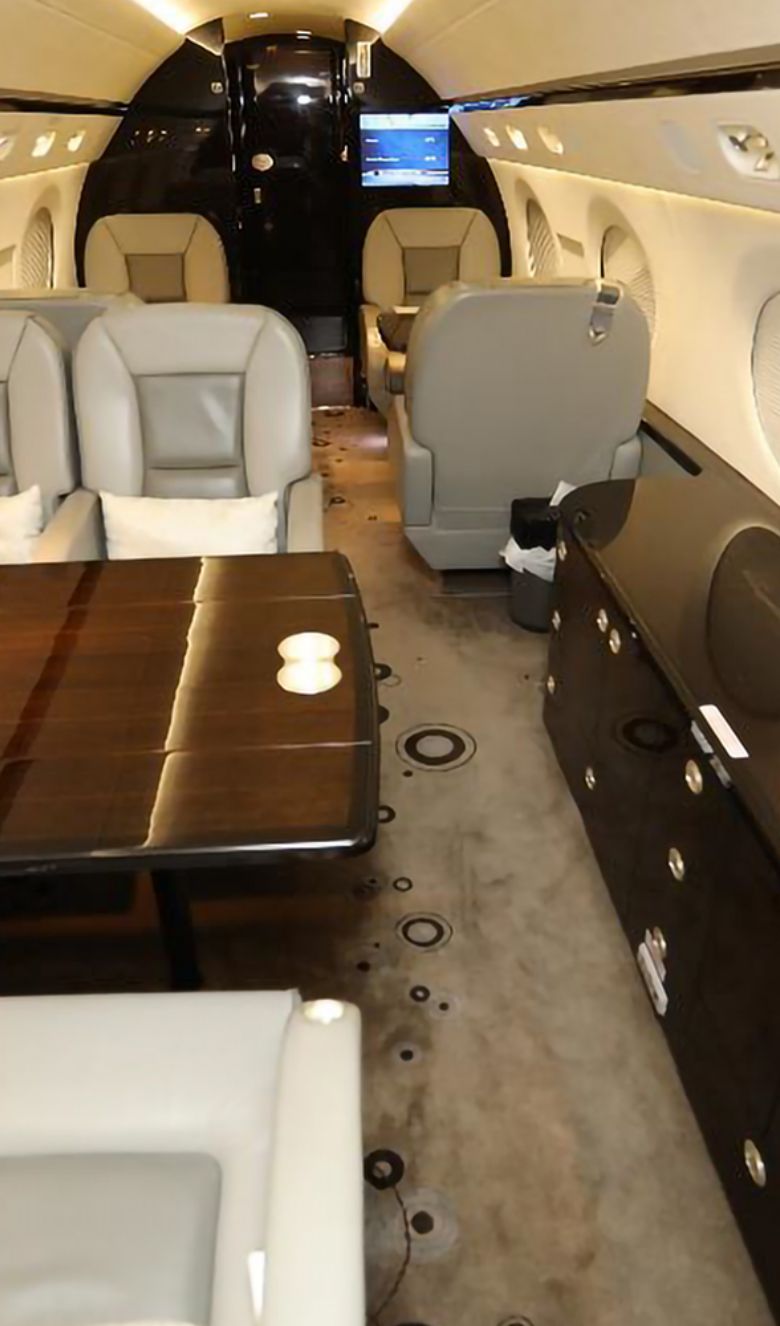

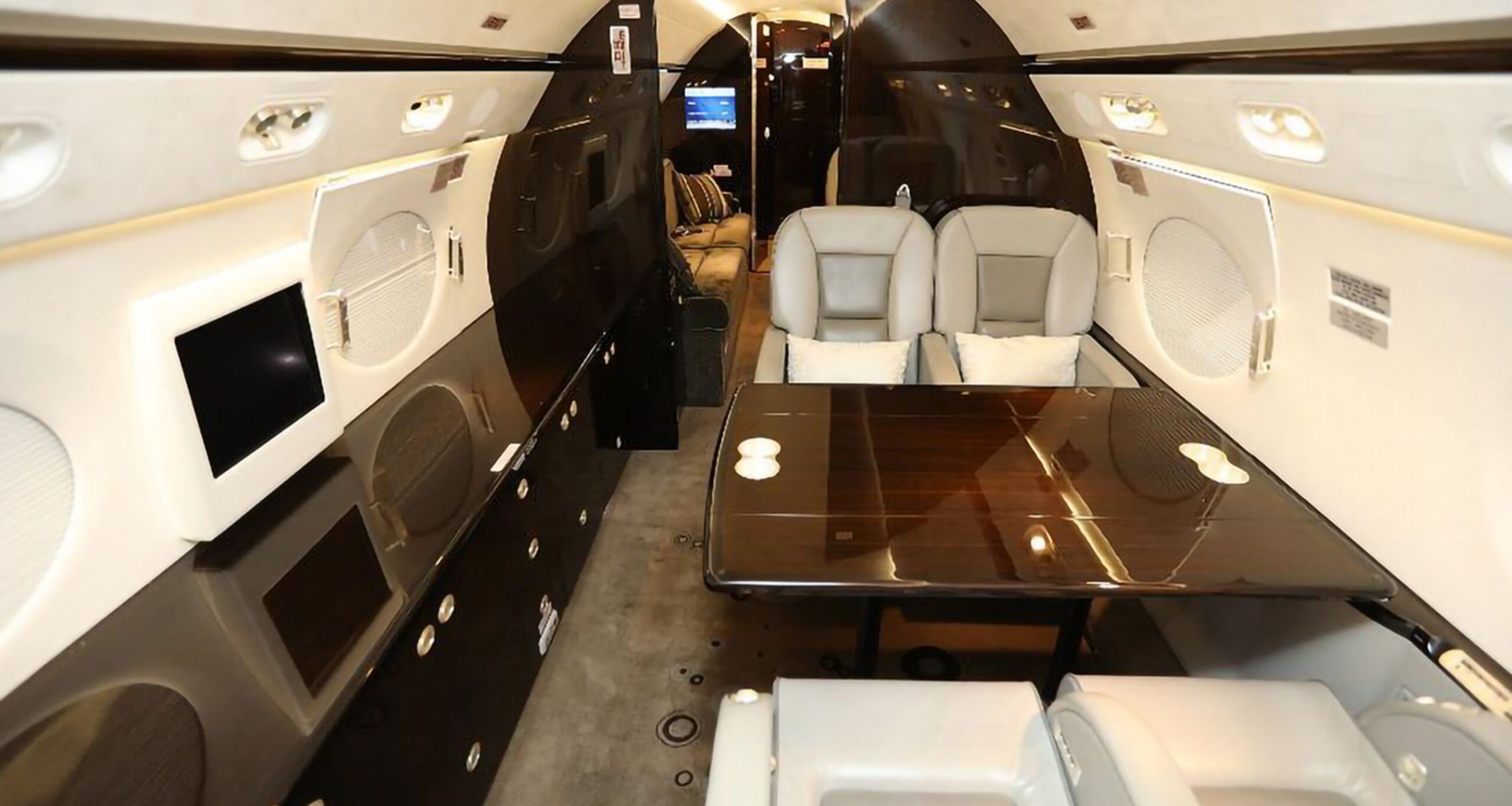

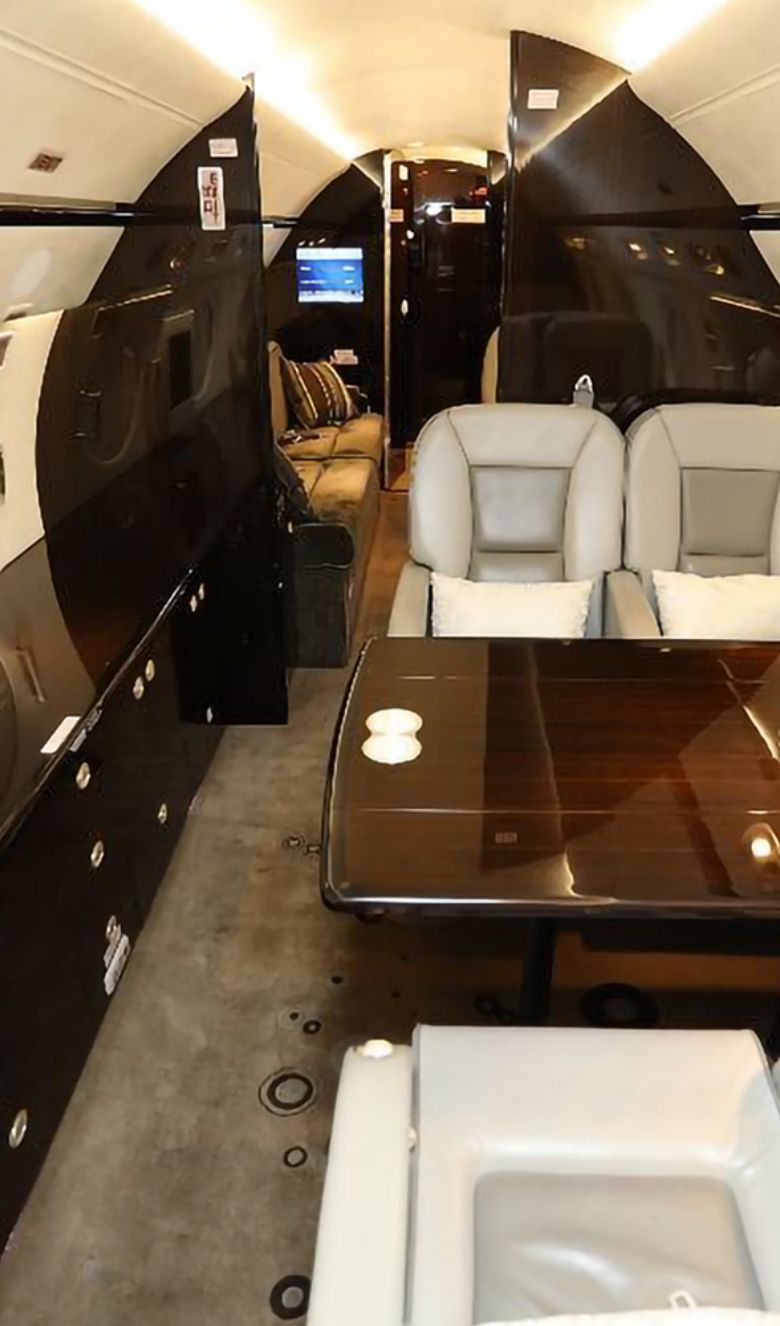

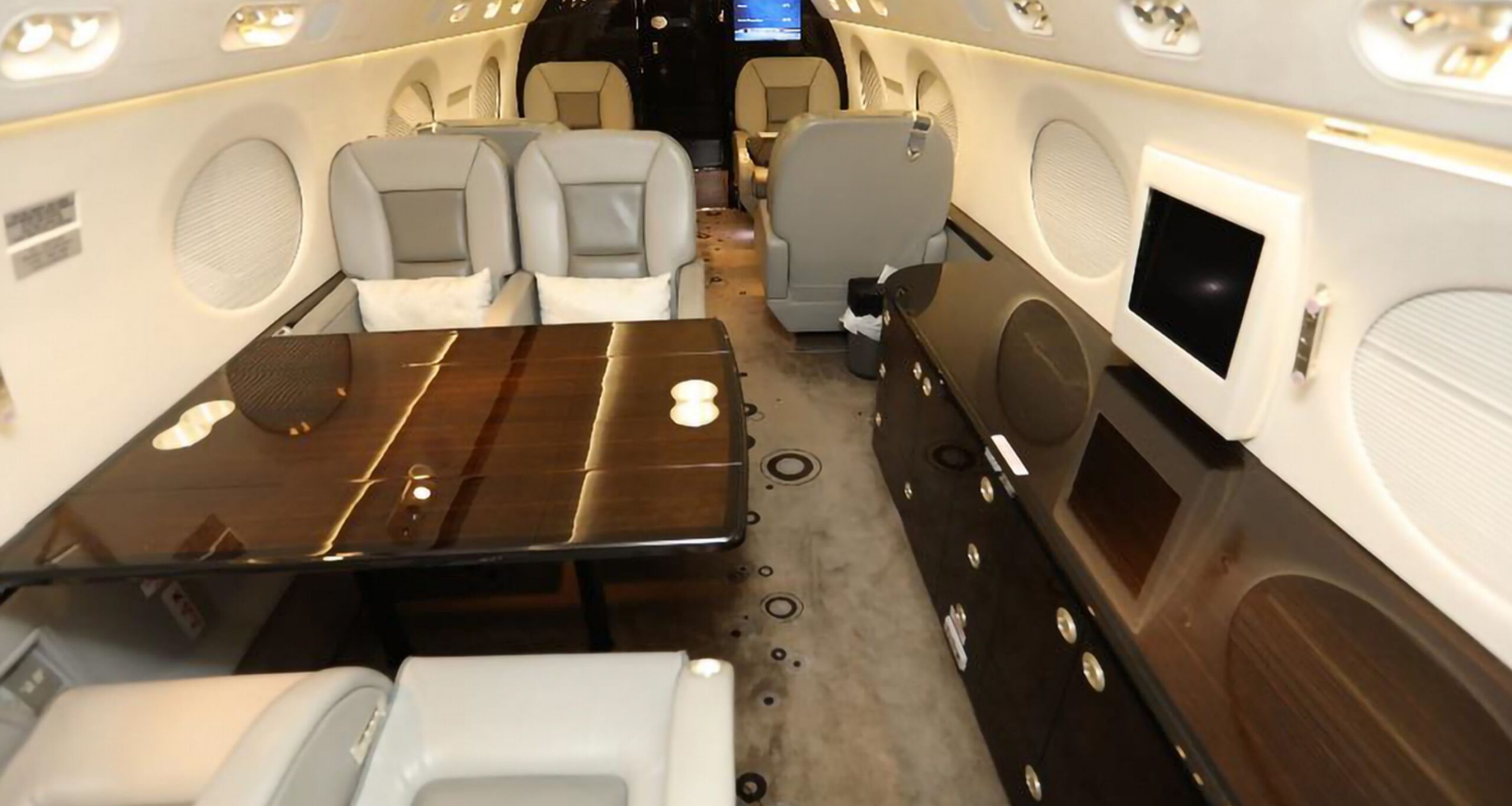

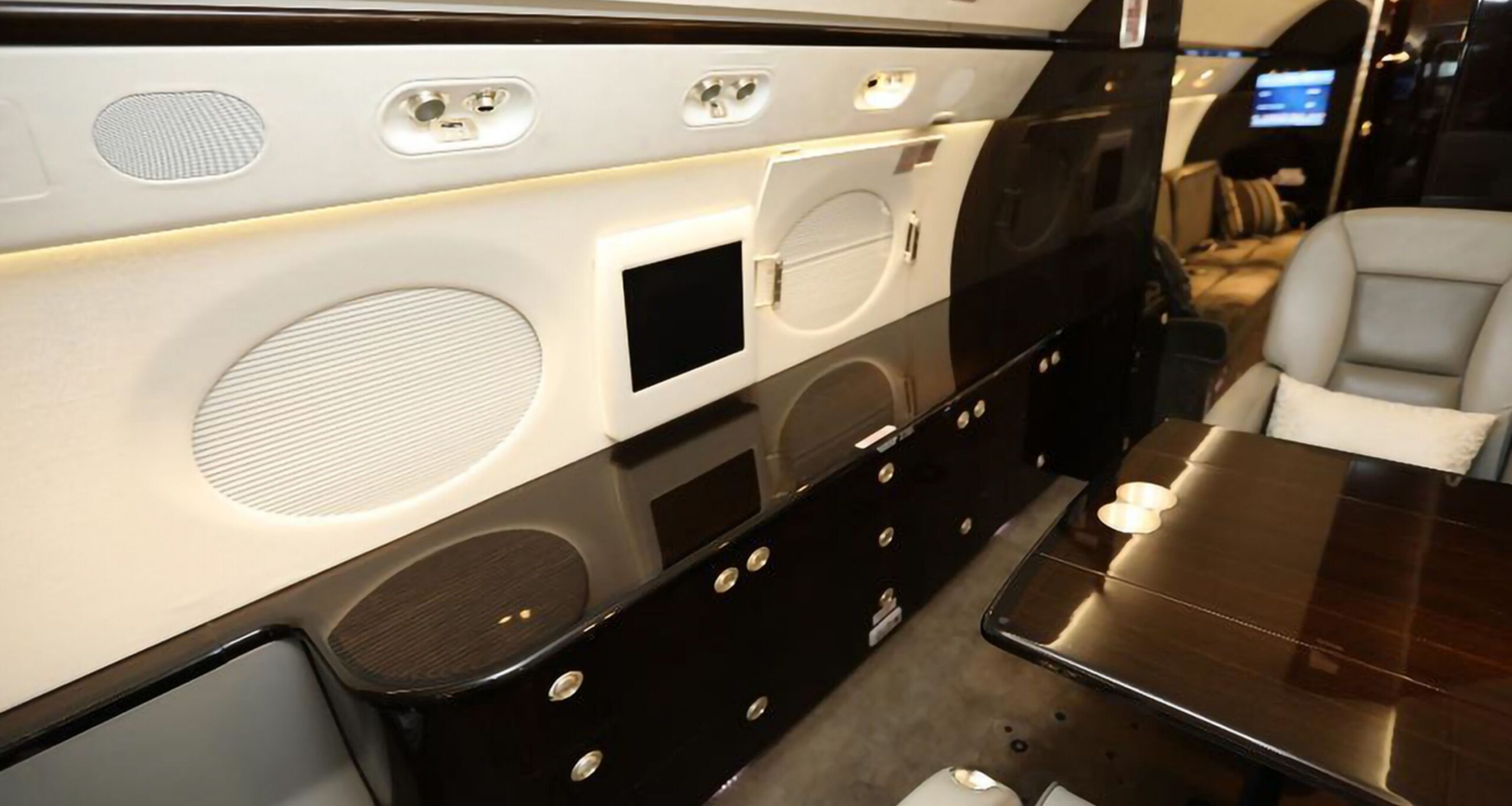

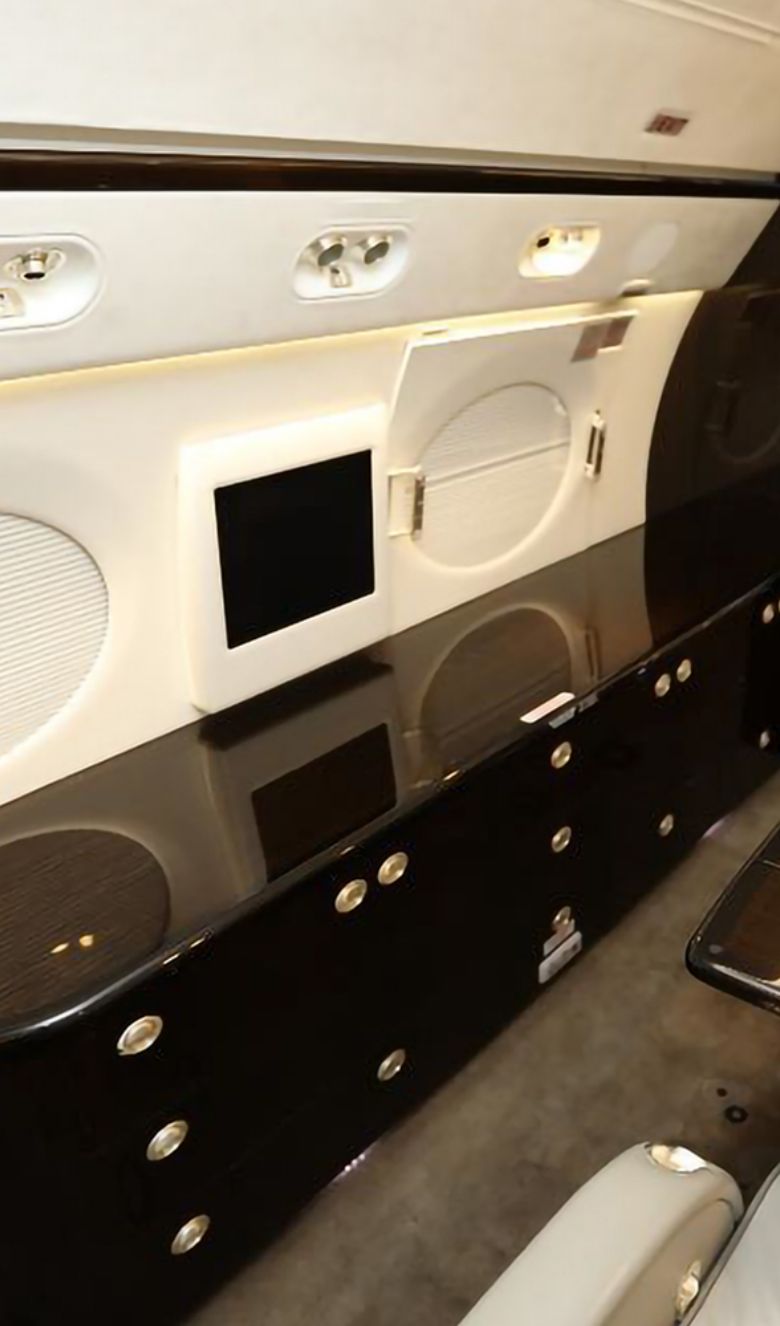

  • Mid cabin: 4 place conference group opposite credenza w/ wine chiller and equipment hub; flush mounted 17” LCD monitor over credenza
  • Mid cabin Upgraded fixed pocket door bulkhead between zones 2 & 3

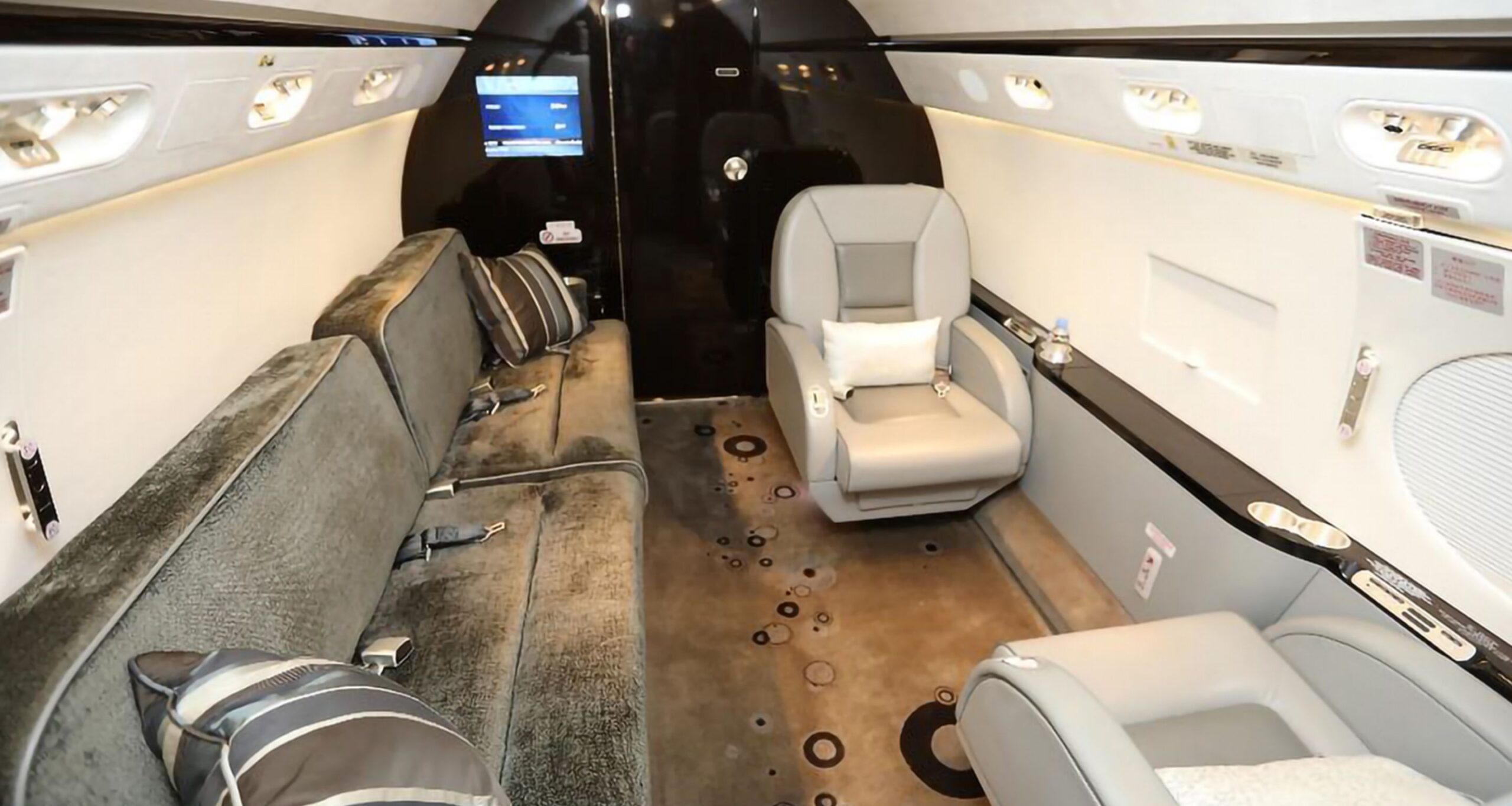

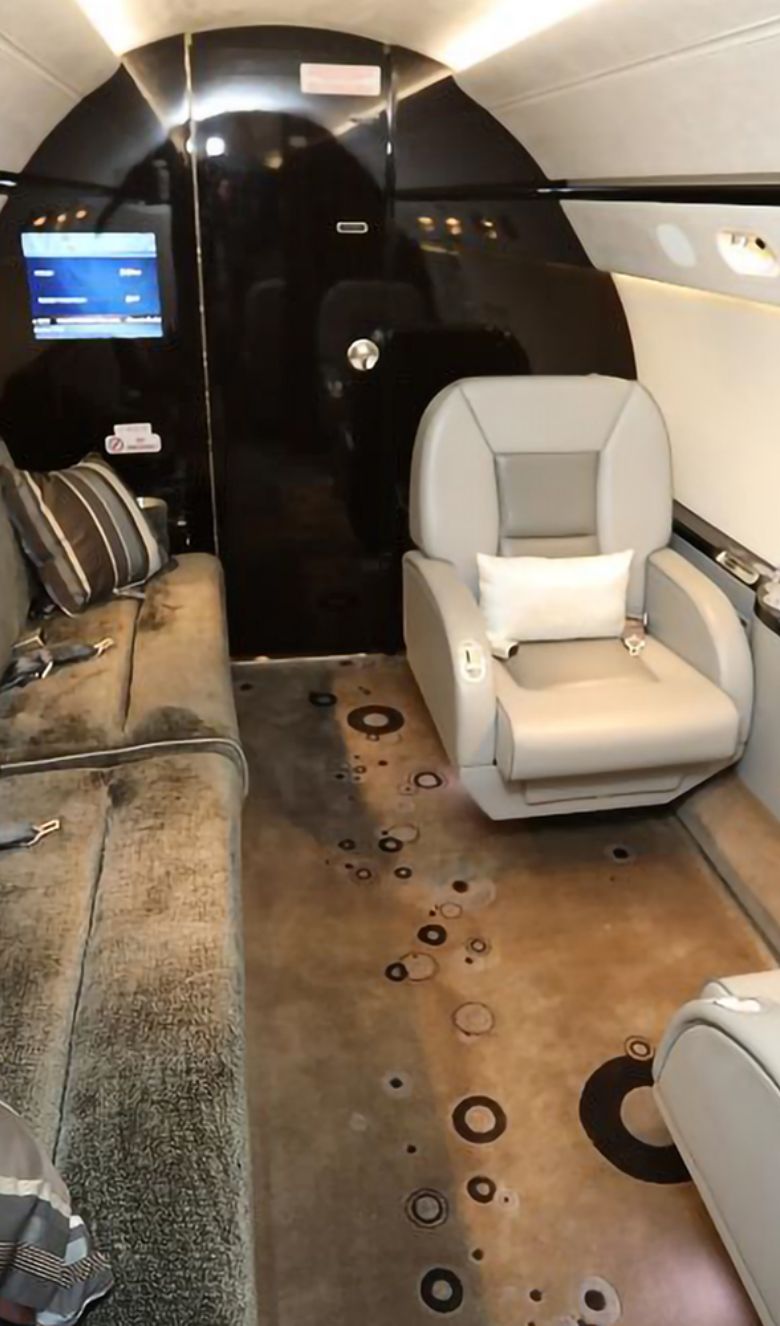

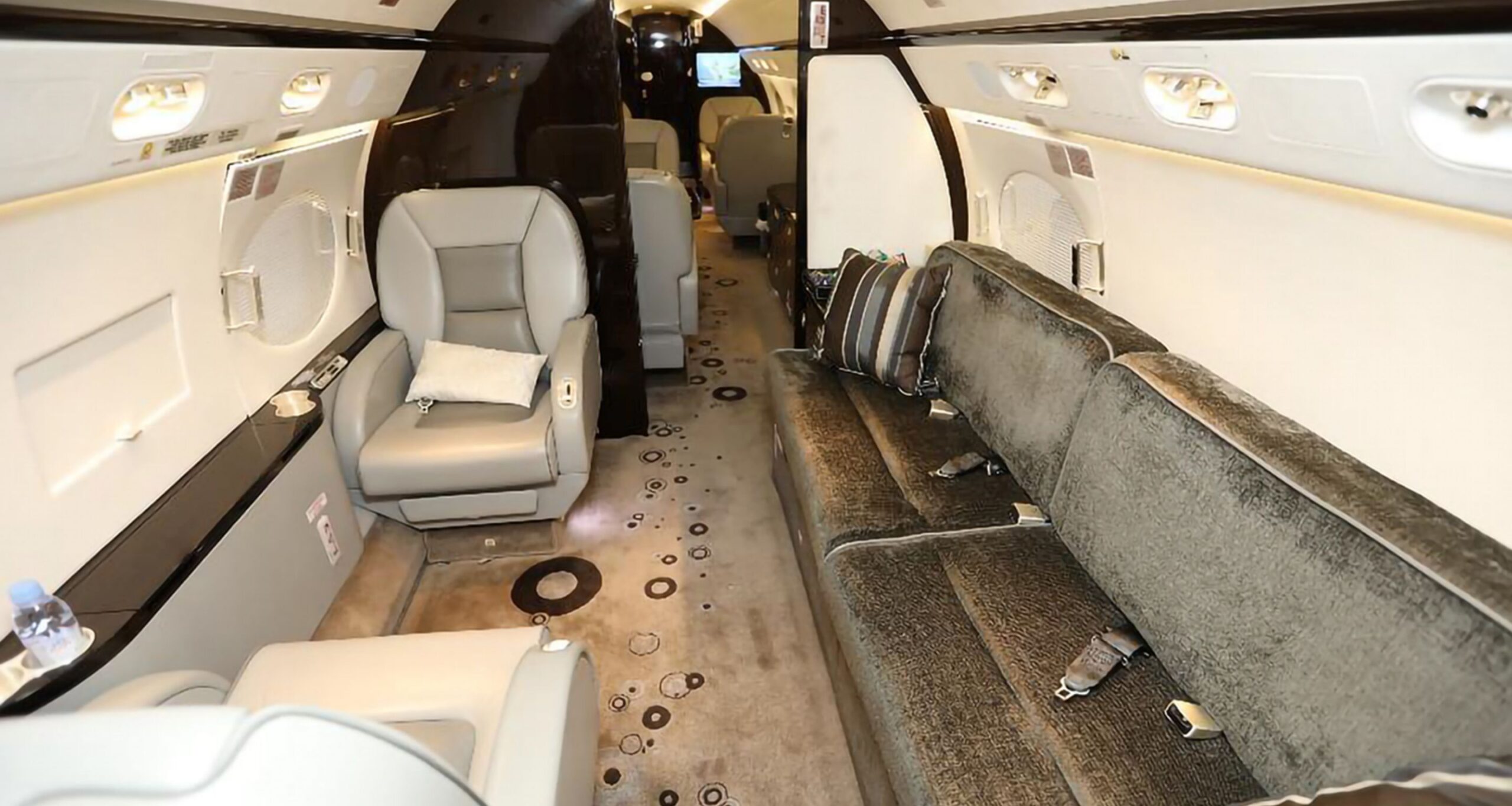

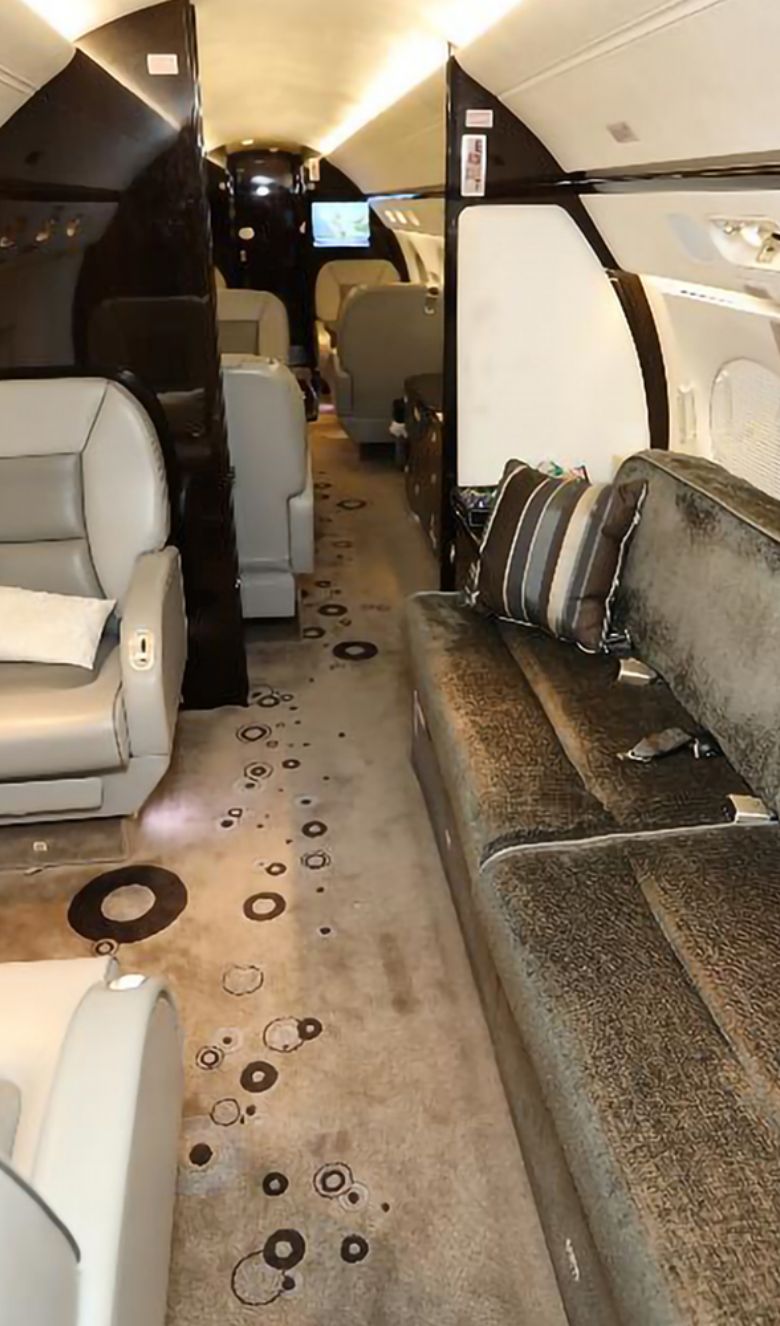

  • Aft cabin: 2 single club seats opposite 4-place divan
  • Aft cabin fixed pocket door bulkhead between zones 3 & 4 with forward facing flush mount 17” LCD monitor

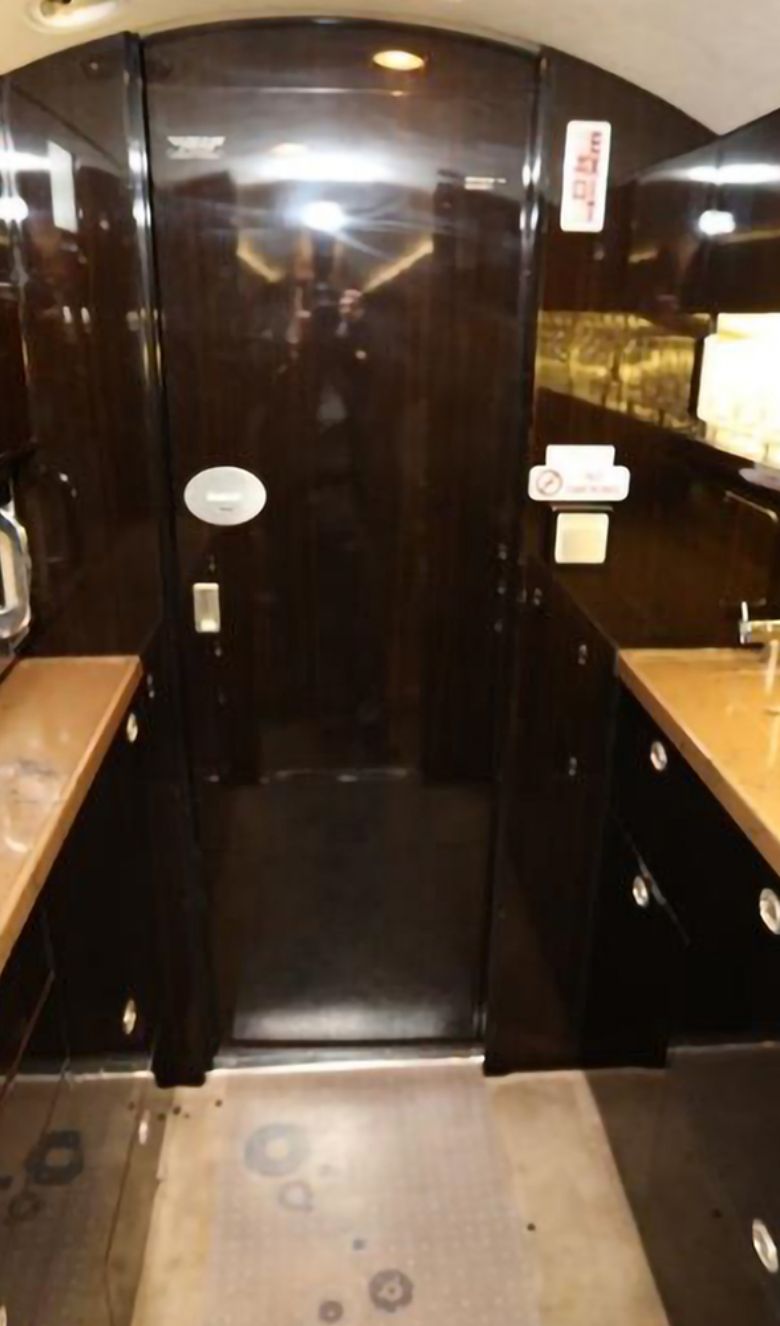

  • Aft lavatory area: passenger vacuum-vented lavatory with backlit vanity station and storage closets; cabin accessible baggage area

• Lie flat berthable seating for 6; Upgraded Sky lounger self-inflating mattresses for double berth conference group and 2 single seats
• Cabin finishes and fixtures: single seats and conference group upholstered in Aeronappa Condor cowhide leather & divan in Seta Java scotch guarded fabric; cabin, aft lavatory and front entry area carpeted in 100% wool Graphic Wheels Aisle patterned carpet with Tapis-Tapis Suede Snowflake headliner and Aeronappa Condor cowhide leather dado; all cabinetry finished in high gloss Qtr Dark Oak hardwood veneer; all fixtures are Satin Nickel metal
